Name: DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs
Brand: Huiding
SKU: 40341
Price: 2 USD
Availability: InStock
Rating: 4.9 (187 reviews)

DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs

100Sets

MOQ

USD2-7.96Set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Latch Type Toggle Clamp

Type: Pull Action Latch

Material: Carbon Steel

Structure: Spring Clamp

Color: Red Grip ,silver Zinc Plated

Standard: Standard

Weight: 664g

Application: For Connection Of Dust Collection Duct And Fittings, Sanitary Pipe Clamp, Holding, Carpentry Clamping Tool/other Heavy Clamping

High Light:

toggle clamps

hole-mount push / pull toggle clamps

toggle clamp latch

Basic Infomation

Place of Origin: Yantai, Shandong, China

Brand Name: Huiding

Certification: ISO9001

Model Number: 40341

Payment & Shipping Terms

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 200000 Sets Per Month

Gallery

DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs

Product Description

DK40341 W1 Pull Action Latch Type Industrial Quick Release Toggle Clamp 2000 Lbs Holding Capacity

Product description of quick release toggle clamp

Miniature Latch clamp with a threaded U bolt for adjustability

Material:Steel, Zinc Plated,stainless steel

Oil and Stain resistant red hand grips

Holding Capacity:990KG

heavy duty toggle clamp, quick release toggle clamp,toggle clamp

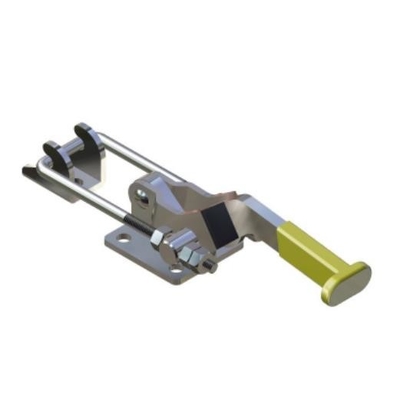

Detailed Drawings

DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs 1

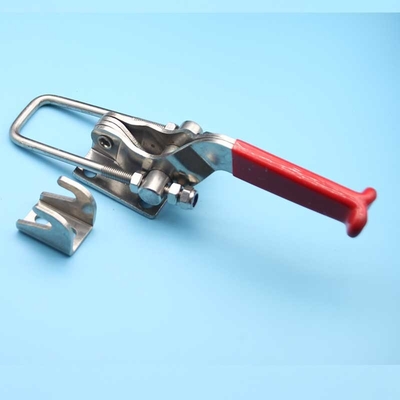

Product detail pictures

DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs 2

Product advantages

1. This quick release heavy duty toggle clamp is assembled and formed by stamping, and the surface of cold-rolled steel is not easy to rust after electroplating.

2. The rivets of toggle clamp are strong and stable, and the riveting process is strictly required.

3. The adjusting shaft is made of stainless steel by die-casting, with high bearing capacity.

4. The high temperature die-casting PVC handle of toggle clamp is not easy to wear and does not hurt the hand, and the color of the handle can be customized.

Product parameters

Model	Material	Surface Traitment	Weight	Dimension
DK40341	Iron	Zinc-plated	655g	Length:280mm
				Width:51mm
				Thickness:3mm
DK40341	ss304	Polished	655g	Length:280mm
				Width:51mm
				Thickness:3mm
