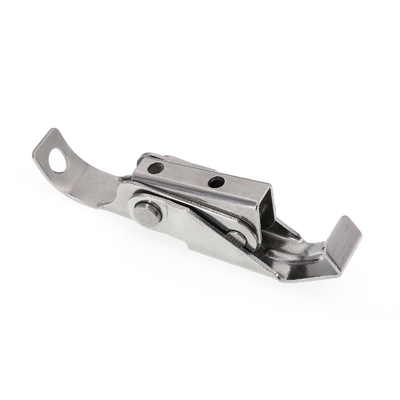

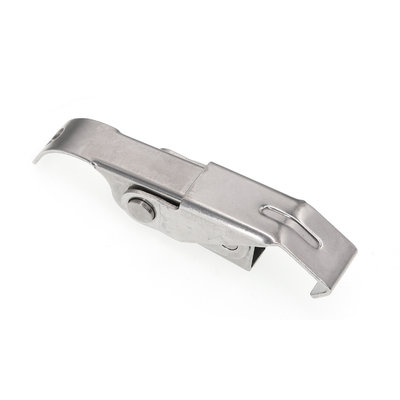

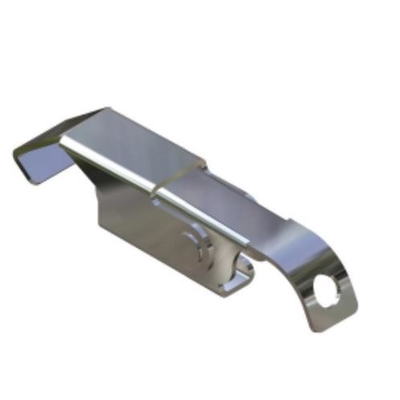

| Product Name | Over Center Latch |
| Material | Iron, Carbon Steel, metal |
| Surface Treatment | Polishing |
| Manufacturing process | Design-CNC laser cutting/flame cutting/deep drawing/stamping-forming/bending-CNC machining –welding-surface treatment-assembling-packing |
| Machining Equipment | Laser Cutting Machine/CNC Shearing Machine/Flat Bed Spot-welder/Die Grinder/Steel Processing Machine/etc. |
| Brand | Huiding |
| Sample time | 7 -14 days |
| Model | DK026 |
| Length | 95mm |
| Width | 18mm |
| Thickness | 1.5mm |
How to install the toggle latch?
The toggle latch (draw latch) is generally composed of two parts, the toggle latch body and the hook (safety catch) piece. The function of the hook piece is to enable the hook on the toggle latch body to hook it, so as to connect the two parts that are not related, so as to achieve the fixing and connecting function of the hasp itself.
There are two installation methods for the toggle latch: screw installation and welding installation.Note that when opening holes on the device, you need to pay attention to the size interval of the openings, because the toggle latch body and the hook two separate parts. If the size control is not good, it may not be in place when buckled
