| Material | Stainless steel / Steel |
| Surface treatment | polish / zinc plated |
| NO. | M10 |
| Usage | used for bag, Safety buckle, swing mouth, carabiner, climbing buckle |
| Storage | keep in cool and dry place away from corrosive liquid |
| Discount | the quantity is larger,the unit price is lower |
| Port | qingdao |

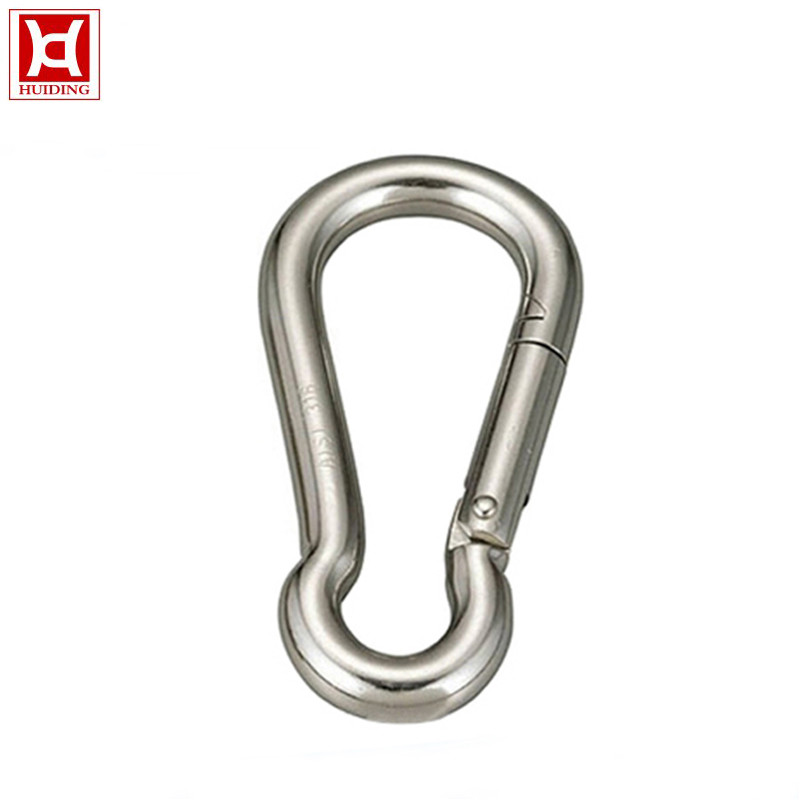

| Products name | Carabiner, 316 stainless steel snap hook, 304 stainless steel snap hooks, 201 stainless steel sanp hook |
| SIZE | A | B | C | D | F | W.L.L | kg |
| mm | mm | mm | mm | mm | mm | LBS | Set |
| 4x40 | 4 | 20 | 40 | 7 | 7 | 80 | 0.008 |
| 5x50 | 5 | 25 | 50 | 8 | 7 | 100 | 0.015 |
| 6x60 | 6 | 30 | 60 | 9 | 8 | 140 | 0.026 |
| 7x70 | 7 | 35 | 70 | 10 | 8 | 200 | 0.043 |
| 8x80 | 8 | 40 | 80 | 12 | 9 | 250 | 0.060 |
| 9x90 | 9 | 45 | 9o | 12 | 10 | 280 | 0.090 |
| 10x100 | 10 | 50 | 100 | 15 | 11 | 400 | 0.115 |
| 11×120 | 11 | 57 | 120 | 18 | 16 | 500 | 0.170 |
| 12×140 | 12 | 67 | 140 | 20 | 19 | 600 | 0.250 |
| 13x160 | 13 | 74 | 160 | 22 | 25 | 700 | 0.34 |
| 14×180 | 14 | 86 | 180 | 22 | 35 | 900 | 0.47 |
Quality Control
1. The quality inspection of raw materials includes indicators such as steel plate hardness;
2. Regular data detection of products, such as length, width, height and weight;
3. Product bearing capacity test;
4. Salt spray test to test the corrosion resistance of products.
Our advantage
1. Professional in manufacturing and exporting for many years;
2. Made from different materials and different surface plated;
3. years of experience in manufacturing and exporting;
4. All sorts of stamping parts can be manufactured according to the customer's requirement, drawing, design, or samples.
