Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO

100Sets
MOQ
USD0.63-3.2SET
Price
Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Adjustable Stainless Steel Draw Latch
Material: SS201,SS304,SS316, Stainless Steel
Finish: Polish
Keyhole: Yes
Oem: Acceptable
Safety Catch: Yes
High Light:

chromium Adjustable Toggle Latch

,

chromium plating latch toggle

,

heavy duty latch toggle clamp ISO

Basic Infomation
Place of Origin: Yantai, Shandong, China
Brand Name: Huiding
Certification: ISO9001
Model Number: DK057-T1
Payment & Shipping Terms
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 200000 Sets Per Month
Product Description

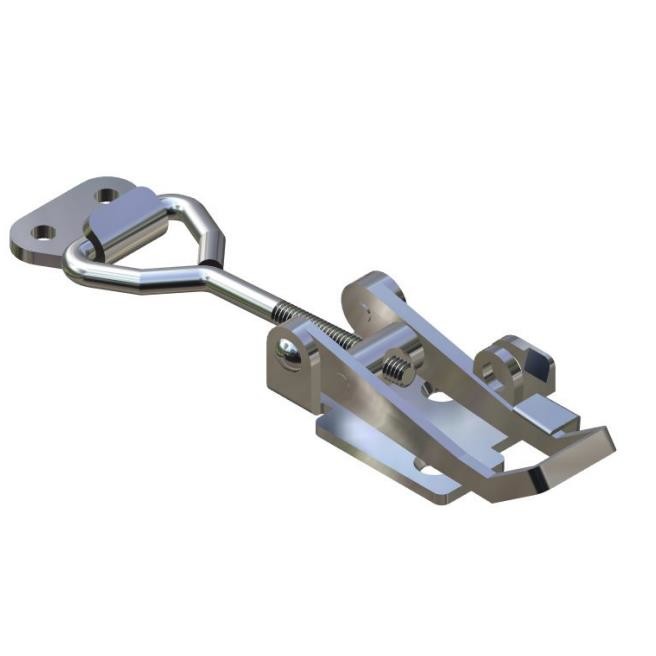

DK057-T1 Adjustable Stainless Steel Toggle Latch With Keyhole On The Side



Product Description



The adjustable toggle latch (draw latch) is generally adjusted by the threads of two threaded rods, one is a Y-shaped threaded rod, and the other is a U-shaped threaded rod.



By adjusting the length of the threaded rod to adjust the tightening force, the threaded adjustable buckle is generally made of two materials, one is the cold-rolled plate material. The other material is stainless steel, which is formed by stamping stainless steel plates.

Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO 0 Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO 1
DK057-G1 DK057-G2
Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO 2 Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO 3

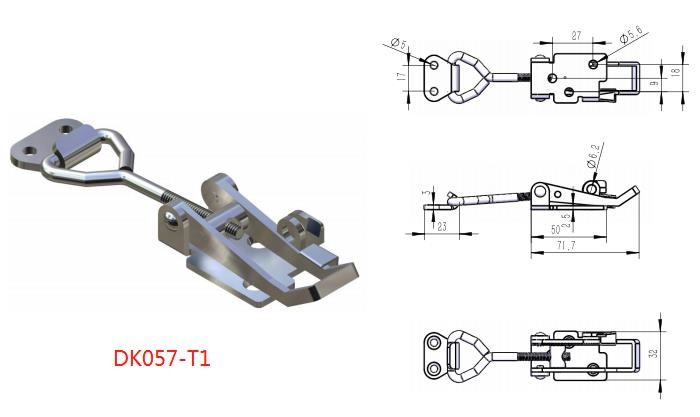

DK057-T1

DK057-T2

The DK057 Series is a Y shaped threaded rod.The entire series includes the following models:

DK057-G1,DK057-G2

DK057-T1,DK057-T2,

DK057-W1,DK057-W2,

DK057-W5,DK057-W6.



Product series features



Model Type of threaded rods With Keyhole Material
DK057-G1 Y-type Yes SPCC,SUS201,SUS304,SUS316
DK057-G2 Y-type Yes SPCC,SUS201,SUS304,SUS316
DK057-T1 Y-type No SPCC,SUS201,SUS304,SUS316
DK057-T2 Y-type Yes SPCC,SUS201,SUS304,SUS316
DK057-W1 Y-type No SPCC,SUS201,SUS304,SUS316
DK057-W2 Y-type No SPCC,SUS201,SUS304,SUS316
DK057-W5 Y-type No SPCC,SUS201,SUS304,SUS316
DK057-W6 Y-type No SPCC,SUS201,SUS304,SUS316



Product details of adjustable toggle latch





Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO 4

Quality Control



1. The quality inspection of raw materials includes indicators such as steel plate hardness;
2. Regular data detection of products, such as length, width, height and weight;
3. Product bearing capacity test;
4. Salt spray test to test the corrosion resistance of products.

Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO 5



Difference between 304 stainless steel and 316 stainless steel material



304 stainless steel  toggle latch contain 18% chromium and 8% nickel, while 316 grade stainless steel buckles are made from a material containing 16% chromium, 11% nickel and 2.5% molybdenum for significantly improved corrosion resistance.



Why choose adjustable toggle latch?



Adjustable toggle latches are more suitable for use on vibrating equipment, because we know that the equipment will inevitably vibrate during the working process, and some special equipment will vibrate a lot during engineering. After a long time, the toggle latches on the above The toggle latch lock may be loose, and the degree of buckling cannot meet the requirements. If we use an adjustable toggle latch lock, then we can adjust the adjustable toggle latch to achieve the effect of tightening at the initial installation.
