The adjustable toggle latch (draw latch) is generally adjusted by the threads of two threaded rods, one is a Y-shaped threaded rod, and the other is a U-shaped threaded rod.
By adjusting the length of the threaded rod to adjust the tightening force, the threaded adjustable buckle is generally made of two materials, one is the cold-rolled plate material. The other material is stainless steel, which is formed by stamping stainless steel plates.
 |
|
| DK057-G1 | DK057-G2 |
|
|
| DK057-T1 |
DK057-T2 |
The DK057 Series is a Y shaped threaded rod.The entire series includes the following models:
DK057-G1,DK057-G2
DK057-T1,DK057-T2,
DK057-W1,DK057-W2,
DK057-W5,DK057-W6.
| Model | Type of threaded rods | With Keyhole | Material |
| DK057-G1 | Y-type | Yes | SPCC,SUS201,SUS304,SUS316 |
| DK057-G2 | Y-type | Yes | SPCC,SUS201,SUS304,SUS316 |
| DK057-T1 | Y-type | No | SPCC,SUS201,SUS304,SUS316 |

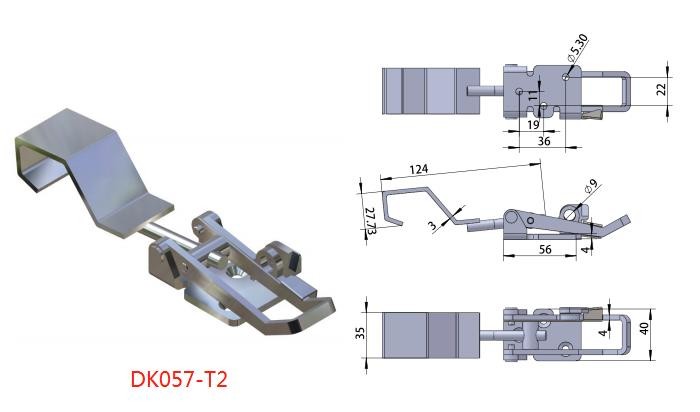

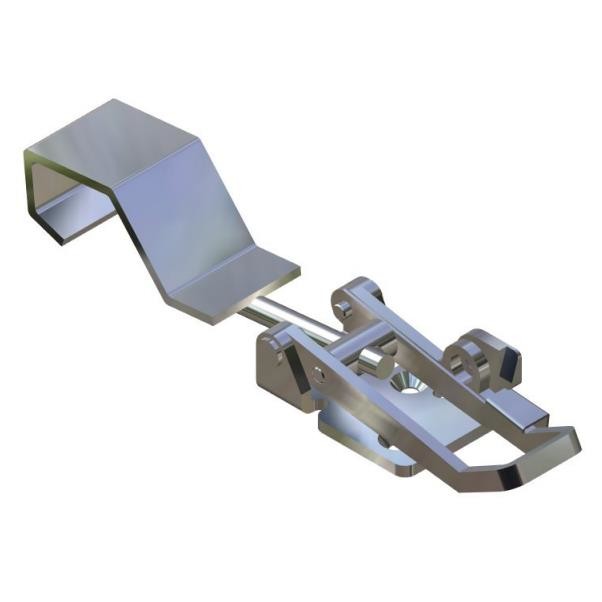

| DK057-T2 | Y-type | Yes | SPCC,SUS201,SUS304,SUS316 |
| DK057-W1 | Y-type | No | SPCC,SUS201,SUS304,SUS316 |
| DK057-W2 | Y-type | No | SPCC,SUS201,SUS304,SUS316 |
| DK057-W5 | Y-type | No | SPCC,SUS201,SUS304,SUS316 |
| DK057-W6 | Y-type | No | SPCC,SUS201,SUS304,SUS316 |
Adjustable toggle latches are more suitable for use on vibrating equipment, because we know that the equipment will inevitably vibrate during the working process, and some special equipment will vibrate a lot during engineering. After a long time, the toggle latches on the above The toggle latch lock may be loose, and the degree of buckling cannot meet the requirements. If we use an adjustable toggle latch lock, then we can adjust the adjustable toggle latch to achieve the effect of tightening at the initial installation.
Our advantage
1.Professional in manufacturing and exporting for many years;
2. Made from different materials and different surface plated;
3. 13 years of experience in manufacturing and exporting;
4. All sorts of stamping parts can be manufactured according to the customer's requirement, drawing, design, or samples.
