M5 Spring Loaded Plunger Pin Heavy Duty Length 8mm 10mm 12mm 16mm 20mm

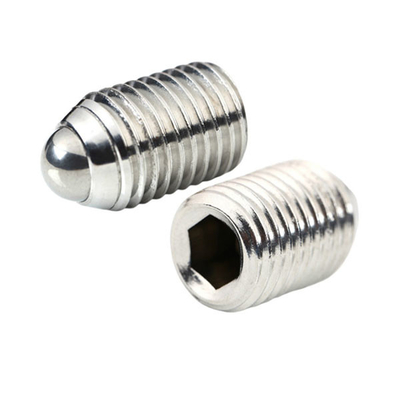

Spring Plunger with pin and internal hexagon, (also known as heavy duty spring plunger, spring loaded plunger pin) is used for positioning, indexing, locking, latching as well as for other similar pressure applications.
It can be used for locating or for applying pressure, as a detent or for ejection.
This spring plunger is a positioning assembly made of three parts: pin, body and spring.

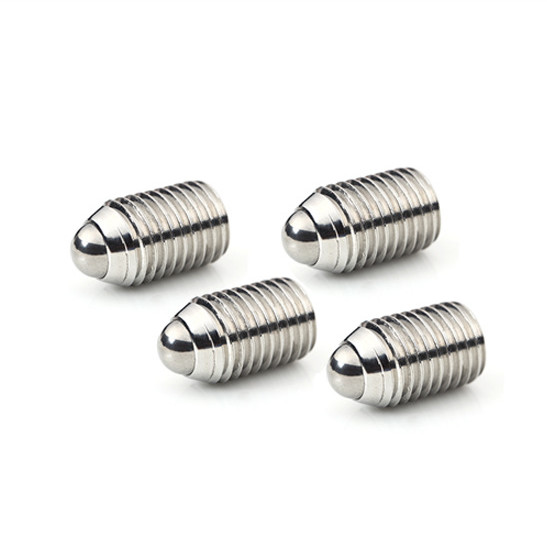

The optional length of M5 retractable ball nose spring plunger model is 8mm, 10mm, 12mm, 16mm, 20mm. Spring force
initial pressure of spring plunger is from 4N to 20N.
| Model | Width of opposite side of inner hexagonal | External diameter | Lenght | Diameter ball | Travel | Spring force initial pressure |
| A (MM) | B (MM) | C (MM) | D (MM) | E(MM) | Min.-Max. (N) | |
| M5X8 | 2.5 | 0.8 | 8 | 3.0 | 1.1 | 4.0-18.0 |
| M5X10 | 2.5 | 0.8 | 10 | 3.0 | 1.1 | 4.0-18.0 |
| M5X12 | 2.5 | 0.8 | 12 | 3.0 | 1.1 | 4.0-18.0 |
| M5X16 | 2.5 | 0.8 | 16 | 3.0 | 1.1 | 5.0-20.0 |
| M5X20 | 2.5 | 0.8 | 20 | 3.0 | 1.1 | 5.0-20.0 |
