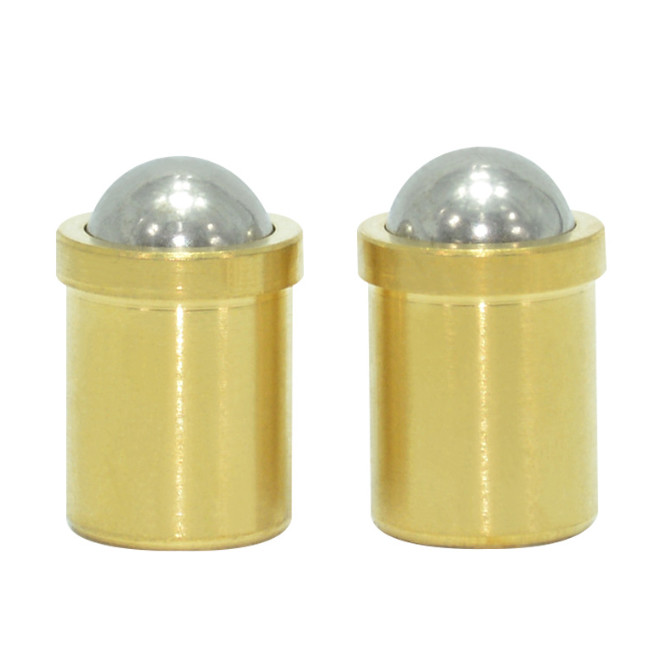

Brass Push-Fit Spring Ball Plunger With Locking Mechanism
Spring Plunger with collar and ball / body from brass, ball from stainless steel, is used for positioning, indexing, locking, latching as well as for other similar pressure applications.
It can be used for locating or for applying pressure, as a detent or for ejection.
Spring loaded force could be made according to customer's requirement.
Model | Body | Ball | |
Material | Material | Hardness | |
HD101-4 | Brass | SUS440C | 55HRC~ |
D | D1 | L | S | d | d1 | Eelastic(N) | |
MIN | MAX | ||||||
3 | 3.6 | 4 | 0.6 | 2 | 1 | 0.74 | 0.98 |
4 | 4.6 | 5 | 0.8 | 3 | 1.5 | 0.65 | 5.6 |
4L | 6.5 | 3.1 | 8.7 | ||||
5 | 5.6 | 6 | 1 | 4 | 2 | 2.8 | 6.3 |
5L | 8 | 5.1 | 13.5 | ||||
6 | 6.6 | 7 | 1.6 | 5 | 2.5 | 3 | 10 |
6L | 9 | 5.3 | 16.5 | ||||
8 | 8.6 | 9 | 1.9 | 6.35 | 3 | 6.5 | 11.7 |
8L | 12 | 8 | 28 | ||||
10 | 10.6 | 11.5 | 2.4 | 8 | 9 | 15 | |
10L | 14.5 | 13.5 | 30.5 | ||||
12 | 12.6 | 16 | 3.5 | 10 | 13 | 60 |
